Specifications

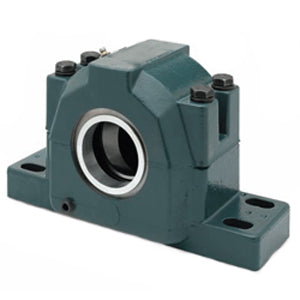

| title | P4B538-USAF-700TT |
| price | $ 6,940.28 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 227 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 409.4 |
| Other Features | Double Row | Open End | Corrosion Resistant |
| Relubricatable | Yes |
| Global Part Number GPN | 520785 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 10.813 Inch | 274.65 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 23 Inch | 584.2 Millimeter |
| Bolt Spacing Minimum | 21.625 Inch | 549.275Millimeter |
| Base to Center Height | 7.875 Inch | 200.025 Millimeter |
| Bolt Spacing Maximum | 24.375 Inch | 619.125Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | BRG22238KC3 |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Tect |
| Housing Material | Cast Iron |
| Mounting Bolts | 1-1/4 Inch |
| Housing Configuration | 2 Piece Split |
