FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

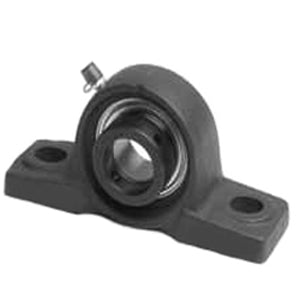

title | PB220DRW X 1-1/2 |
price | $ 61.10 / each |
Category | Pillow Block Bearings |
UNSPSC | 31171511 |
Harmonized Tariff Code | 8483.20.40.40 |
Manufacturer Name | HUB CITY |
Inch - Metric | Inch |
Brand | HUB CITY |
Weight / LBS | 4.5 |
Other Features | Single Row | Spherical | Low Base | Wide Inner Race | Has Flinger | With Set Screw |
Relubricatable | Yes |
Global Part Number GPN | 519911 |
Mounting Method | Eccentric Collar |
Length Thru Bore | 2.216 Inch | 56.286 Millimeter |
Actual Bolt Center to Center | 0 Inch | 0Millimeter |
Nominal Bolt Center to Center | 5.4 Inch | 136 Millimeter |
Bolt Spacing Minimum | 5.313 Inch | 134.95Millimeter |
Base to Center Height | 1.938 Inch | 49.225 Millimeter |
Bolt Spacing Maximum | 5.688 Inch | 144.475Millimeter |
Housing Style | 2 Bolt Pillow Block |
Insert Part Number | B250RW |
Number of Mounting Holes | 2 |
Expansion / Non-expansion | Non-expansion |
Seals | Nitrile Rubber |
Housing Material | Cast Iron |
Mounting Bolts | 1/2 Inch |
Housing Configuration | 1 Piece Solid |
