Specifications

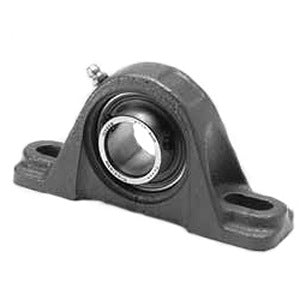

| title | PB220W X 1-3/4 |
| price | $ 154.90 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | HUB CITY |
| Inch - Metric | Inch |
| Brand | HUB CITY |
| Weight / LBS | 4.8 |
| Other Features | Single Row | Spherical | Low Base | Wide Inner Race | Has Trash Guard | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 519843 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.217 Inch | 56.3 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 5.8 Inch | 146.5 Millimeter |
| Bolt Spacing Minimum | 5.375 Inch | 136.525Millimeter |
| Base to Center Height | 2.063 Inch | 52.4 Millimeter |
| Bolt Spacing Maximum | 6.25 Inch | 158.75Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | YW220 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Nitrile Rubber |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
