Specifications

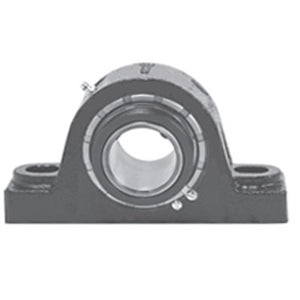

| title | PB224M60H |
| price | $ 597.43 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 8.01 |
| Inch - Metric | Metric |
| Brand | LINK BELT |
| Weight / LBS | 17.637 |
| Other Features | Double Row | Single Collar | Extended Inner Race | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 517817 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.5 Inch | 88.9 Millimeter |
| Actual Bolt Center to Center | 7.1 Inch | 181Millimeter |
| Nominal Bolt Center to Center | 7.1 Inch | 181 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 2.756 Inch | 70 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | B224M60HL |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Floating Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 16 Millimeter |
| Housing Configuration | 1 Piece Solid |
