In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

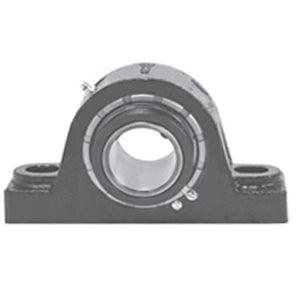

| title | PB224M90H |
| price | $ 2,148.34 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Metric |
| Brand | LINK BELT |
| Weight / LBS | 63.273 |
| Other Features | Double Row | Single Collar | Extended Inner Race | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 517803 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 5.063 Inch | 128.59 Millimeter |
| Actual Bolt Center to Center | 11.7 Inch | 298.4Millimeter |
| Nominal Bolt Center to Center | 11.7 Inch | 298.4 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 4.252 Inch | 108 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | B224M90HL |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Floating Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 24 Millimeter |
| Housing Configuration | 1 Piece Solid |
