FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

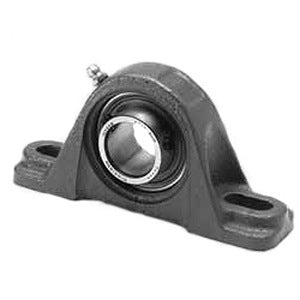

| title | PB250W X 2-7/16 |
| price | $ 243.07 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | HUB CITY |
| Inch - Metric | Inch |
| Brand | HUB CITY |
| Weight / LBS | 10.9 |
| Other Features | Single Row | Spherical | Low Base | Wide Inner Race | Has Trash Guard |
| Relubricatable | Yes |
| Global Part Number GPN | 519634 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.566 Inch | 65.176 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 7.5 Inch | 190 Millimeter |
| Bolt Spacing Minimum | 6.75 Inch | 171.45Millimeter |
| Base to Center Height | 2.688 Inch | 68.275 Millimeter |
| Bolt Spacing Maximum | 8.125 Inch | 206.375Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | YW250 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Nitrile Rubber |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
