Specifications

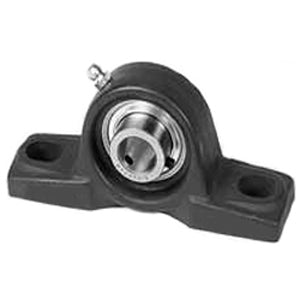

| title | PB251DRW X 5/8 |
| price | $ 33.07 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | HUB CITY |
| Inch - Metric | Inch |
| Brand | HUB CITY |
| Weight / LBS | 1.3 |
| Other Features | Single Row | Spherical | High Base | Wide Inner Race | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 519579 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.079 Inch | 27.4 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 3.6 Inch | 92 Millimeter |
| Bolt Spacing Minimum | 3.547 Inch | 90.094Millimeter |
| Base to Center Height | 1.188 Inch | 30.175 Millimeter |
| Bolt Spacing Maximum | 4.016 Inch | 102.006Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | B250RW |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Nitrile Rubber |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/8 Inch |
| Housing Configuration | 1 Piece Solid |
