FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

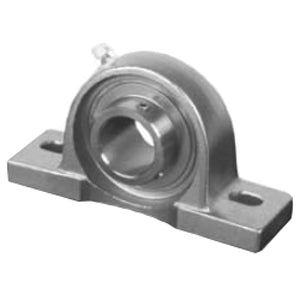

| title | PB251STW X 1-11/16 |
| price | $ 366.43 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | HUB CITY |
| Inch - Metric | Inch |
| Brand | HUB CITY |
| Weight / LBS | 5 |
| Other Features | Single Row | Spherical | Wide Inner Race | Has Flinger | Anti Rotation Pin |
| Relubricatable | Yes |
| Global Part Number GPN | 519535 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.937 Inch | 49.2 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 5.8 Inch | 146.5 Millimeter |
| Bolt Spacing Minimum | 5.563 Inch | 141.3Millimeter |
| Base to Center Height | 2.125 Inch | 53.98 Millimeter |
| Bolt Spacing Maximum | 5.938 Inch | 150.825Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | B250TW |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Silicone |
| Housing Material | Stainless Steel |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
