FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

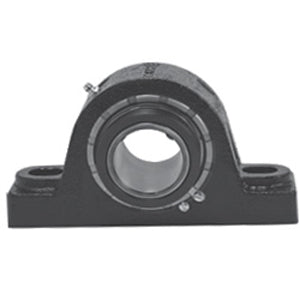

| title | PEB224M35H |
| price | $ 476.16 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Metric |
| Brand | LINK BELT |
| Weight / LBS | 7.055 |
| Other Features | Double Row | Single Collar | Extended Inner Race | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 517529 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.875 Inch | 73.02 Millimeter |
| Actual Bolt Center to Center | 5 Inch | 127Millimeter |
| Nominal Bolt Center to Center | 5 Inch | 127 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.874 Inch | 47.6 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | B224M35HL |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Floating Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 12 Millimeter |
| Housing Configuration | 1 Piece Solid |
