Specifications

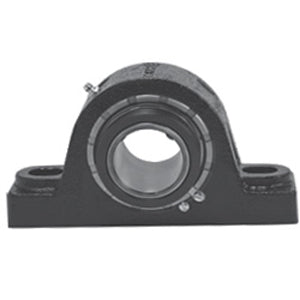

| title | PEB22547E7 |
| price | $ 1,249.03 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 37 |
| Other Features | Double Row | Double Collar | Extended Inner Race | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 517342 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 4.875 Inch | 123.83 Millimeter |
| Actual Bolt Center to Center | 9.8 Inch | 250Millimeter |
| Nominal Bolt Center to Center | 9.8 Inch | 248.9 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 3.5 Inch | 88.9 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | B22547E7L |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Triple Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 7/8 Inch |
| Housing Configuration | 1 Piece Solid |
