Specifications

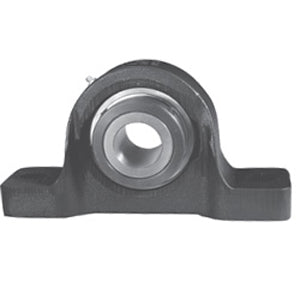

| title | PEU3K35N |
| price | $ 1,363.29 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 35 |
| Other Features | Single Row | Heavy Duty | Standard Backing |
| Relubricatable | Yes |
| Global Part Number GPN | 517174 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 3.031 Inch | 77 Millimeter |
| Actual Bolt Center to Center | 11.8 Inch | 300Millimeter |
| Nominal Bolt Center to Center | 11.8 Inch | 300 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 4 Inch | 101.6 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UG3K35NL |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Double Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 7/8 Inch |
| Housing Configuration | 1 Piece Solid |
