Specifications
| title | PH3U2M55N |
| price | $ 477.73 / each |

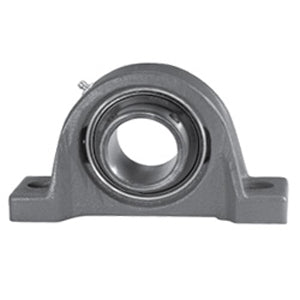

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Metric |
| Brand | LINK BELT |
| Weight / LBS | 13.095 |
| Other Features | Single Row | Standard Duty | High Base | Wide Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 517125 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.25 Inch | 57.15 Millimeter |
| Actual Bolt Center to Center | 8.9 Inch | 225.4Millimeter |
| Nominal Bolt Center to Center | 8.9 Inch | 226 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 3.126 Inch | 79.4 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UG2M55NL |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 16 Millimeter |
| Housing Configuration | 1 Piece Solid |
