Specifications

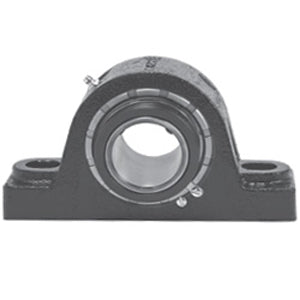

| title | PKB224M80H |
| price | $ 2,408.69 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Metric |
| Brand | LINK BELT |
| Weight / LBS | 44.533 |
| Other Features | Double Row | Single Collar | Extended Inner Race | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 517103 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 4.375 Inch | 111.13 Millimeter |
| Actual Bolt Center to Center | 10 Inch | 254Millimeter |
| Nominal Bolt Center to Center | 10 Inch | 254 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 3.74 Inch | 95 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | B224M80HL |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Floating Labyrinth |
| Housing Material | Cast Steel |
| Mounting Bolts | 24 Millimeter |
| Housing Configuration | 1 Piece Solid |
