Specifications
| title | PKB22663FH |
| price | $ 4,094.75 / each |

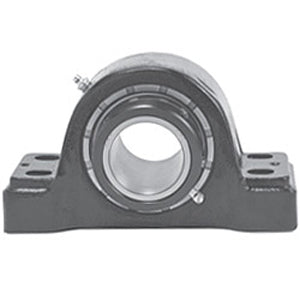

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 74 |
| Other Features | Double Row | Extended Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 247409 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 4.94 Inch | 125.476 Millimeter |
| Actual Bolt Center to Center | 12.5 Inch | 317.5Millimeter |
| Nominal Bolt Center to Center | 12.5 Inch | 317.5 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 4.25 Inch | 107.95 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | B22663HL |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Floating Labyrinth |
| Housing Material | Cast Steel |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 1 Piece Solid |
