Specifications

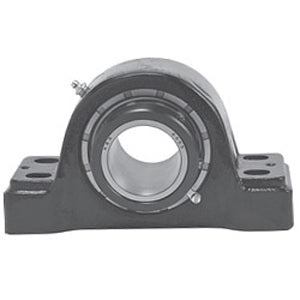

| title | PKEB224M75FH |
| price | $ 1,788.76 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Metric |
| Brand | LINK BELT |
| Weight / LBS | 28.66 |
| Other Features | Double Row | Single Collar | Extended Inner Race | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 516948 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 4 Inch | 101.6 Millimeter |
| Actual Bolt Center to Center | 8.1 Inch | 206Millimeter |
| Nominal Bolt Center to Center | 8.4 Inch | 213 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 3.252 Inch | 82.6 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | B224M75HL |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Expansion |
| Seals | Floating Labyrinth |
| Housing Material | Cast Steel |
| Mounting Bolts | 16 Millimeter |
| Housing Configuration | 1 Piece Solid |
