Specifications
| title | PL3S218E |
| price | $ 74.25 / each |

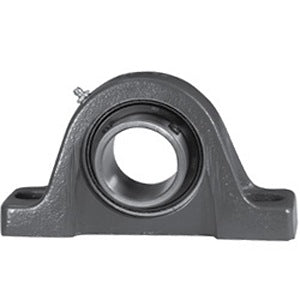

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 1.243 |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 2.27 |
| Other Features | Single Row | Standard Duty | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 516299 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.344 Inch | 34.138 Millimeter |
| Nominal Bolt Center to Center | 4.6 Inch | 116.8 Millimeter |
| Bolt Spacing Minimum | 4.125 Inch | 104.775Millimeter |
| Base to Center Height | 1.563 Inch | 39.7 Millimeter |
| Bolt Spacing Maximum | 5.125 Inch | 130.175Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | MB251-18-PA |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
