Specifications

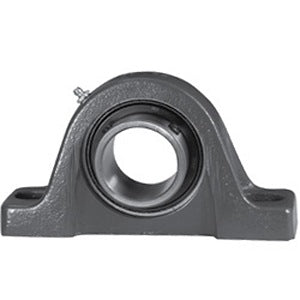

| title | PL3S222E |
| price | $ 135.68 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 3.3 |
| Other Features | Single Row | Intermediate Duty | Low Base | Extended Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 516578 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.563 Inch | 39.69 Millimeter |
| Actual Bolt Center to Center | 4.9 Inch | 125.4Millimeter |
| Nominal Bolt Center to Center | 5 Inch | 127 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.813 Inch | 46.05 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | SG222EL |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
