FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

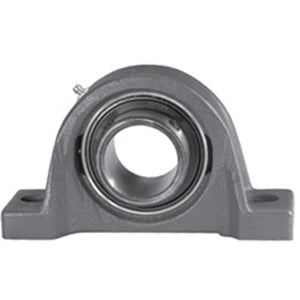

| title | PL3U227NK36 |
| price | $ 216.37 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 5.2 |
| Other Features | Single Row | Standard Duty | Low Base | Wide Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 516564 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.031 Inch | 51.59 Millimeter |
| Actual Bolt Center to Center | 5.6 Inch | 143Millimeter |
| Nominal Bolt Center to Center | 5.8 Inch | 146.5 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 2.063 Inch | 52.4 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UG227NL |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
