Specifications
| title | PL3U235E3 |
| price | $ 320.54 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 7.4 |
| Other Features | Single Row | Standard Duty | Low Base | Wide Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 516562 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.25 Inch | 57.15 Millimeter |
| Actual Bolt Center to Center | 6.8 Inch | 171.5Millimeter |
| Nominal Bolt Center to Center | 6.8 Inch | 171.5 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 2.438 Inch | 61.925 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |

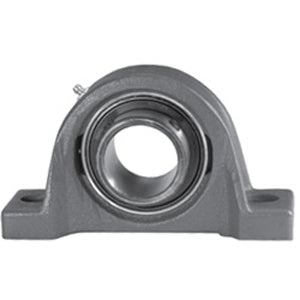

| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UG235E3L |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
