Specifications

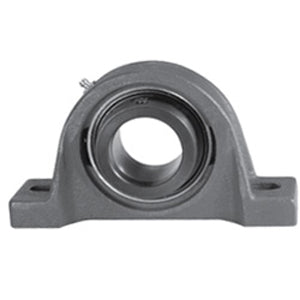

| title | PL3Y224N |
| price | $ 116.86 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 2.18 |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 4.8 |
| Other Features | Single Row | Standard Duty | Low Base | Wide Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 245919 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.219 Inch | 56.363 Millimeter |
| Actual Bolt Center to Center | 5.4 Inch | 136Millimeter |
| Nominal Bolt Center to Center | 5.4 Inch | 136 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.938 Inch | 49.225 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | YG224NL |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
