Specifications

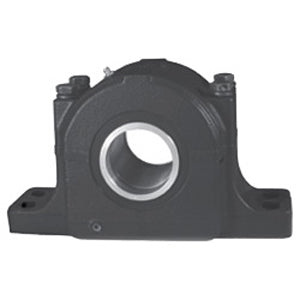

| title | PLB6847FD5 |
| price | $ 1,022.14 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 47 |
| Other Features | Double Row |
| Relubricatable | Yes |
| Global Part Number GPN | 247616 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 0 Inch | 0 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 10.4 Inch | 264.2 Millimeter |
| Bolt Spacing Minimum | 9.875 Inch | 250.83Millimeter |
| Base to Center Height | 3.75 Inch | 95.25 Millimeter |
| Bolt Spacing Maximum | 11 Inch | 279.4Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 22217LBC3 |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Pentac 5 Point |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 2 Piece Split |
