FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

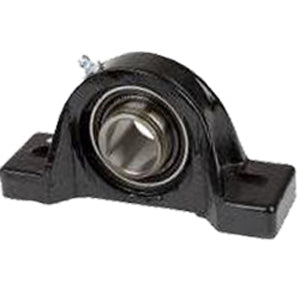

| title | PNR5/8RS |
| price | $ 47.03 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 1.579 |
| Other Features | Single Row | Narrow Inner Race | High Base | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 500432 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.125 Inch | 28.575 Millimeter |
| Actual Bolt Center to Center | 3.5 Inch | 88.9Millimeter |
| Nominal Bolt Center to Center | 3.6 Inch | 91.4 Millimeter |
| Base to Center Height | 1.188 Inch | 30.175 Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | NPS-010-RRNC |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/8 Inch |
| Housing Configuration | 1 Piece Solid |
