FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

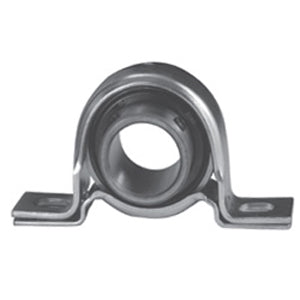

| title | PSS223E |
| price | $ 53.25 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 0.681 |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 1.5 |
| Other Features | Single Row | Standard Duty | Has Flinger |
| Relubricatable | No |
| Global Part Number GPN | 515905 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.563 Inch | 39.69 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 4.3 Inch | 108 Millimeter |
| Bolt Spacing Minimum | 3.938 Inch | 100.025Millimeter |
| Base to Center Height | 1.563 Inch | 39.7 Millimeter |
| Bolt Spacing Maximum | 4.438 Inch | 112.725Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | MB251-716-PA |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Stamped Steel |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
CHAT NOW
