Specifications

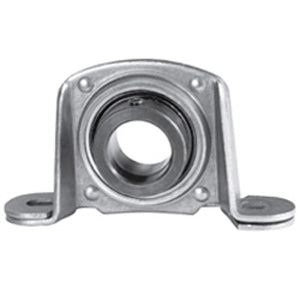

| title | PSW210E |
| price | $ 49.33 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 0.7 |
| Other Features | Single Row | Intermediate Duty | Extended Inner Race |
| Relubricatable | No |
| Global Part Number GPN | 245951 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.125 Inch | 28.58 Millimeter |
| Actual Bolt Center to Center | 3.5 Inch | 90Millimeter |
| Nominal Bolt Center to Center | 3.6 Inch | 92 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.188 Inch | 30.175 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | WG210EL |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Formed Steel |
| Mounting Bolts | 3/8 Inch |
| Housing Configuration | 1 Piece Solid |
