Specifications

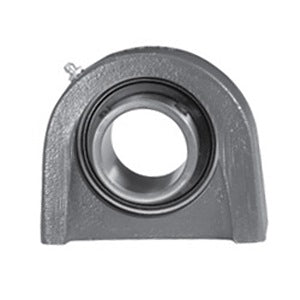

| title | PT3S225E |
| price | $ 122.95 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 3.6 |
| Other Features | Single Row | Standard Duty | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 515878 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.656 Inch | 42.06 Millimeter |
| Actual Bolt Center to Center | 3.5 Inch | 90Millimeter |
| Nominal Bolt Center to Center | 3.5 Inch | 90 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.938 Inch | 49.225 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Tap Base Pillow Block |
| Insert Part Number | MB251-916-PA |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
