Specifications

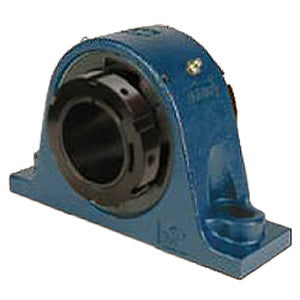

| title | QAAPL11A055SB |
| price | $ 468.53 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | QM INDUSTRIES |
| Inch - Metric | Metric |
| Brand | QM INDUSTRIES |
| Weight / LBS | 17 |
| Other Features | Double Row | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 499348 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 4 Inch | 101.6 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.8 Inch | 171.5 Millimeter |
| Bolt Spacing Minimum | 6.5 Inch | 165.1Millimeter |
| Base to Center Height | 2.5 Inch | 63.5 Millimeter |
| Bolt Spacing Maximum | 7.06 Inch | 179.324Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 22211 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Double Lip Nitrile Rubber |
| Housing Material | Cast Steel |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
