Specifications

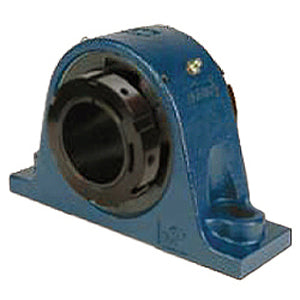

| title | QAP11A055SO |
| price | $ 441.14 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | QM INDUSTRIES |
| Inch - Metric | Metric |
| Brand | QM INDUSTRIES |
| Weight / LBS | 17 |
| Other Features | Double Row | Single Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 498055 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.125 Inch | 79.38 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 7.2 Inch | 182.9 Millimeter |
| Bolt Spacing Minimum | 6.5 Inch | 165.1Millimeter |
| Base to Center Height | 2.5 Inch | 63.5 Millimeter |
| Bolt Spacing Maximum | 7.875 Inch | 200.025Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 22211 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Urethane |
| Housing Material | Cast Steel |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
