Specifications

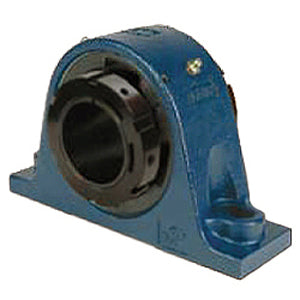

| title | QVPL14V207SO |
| price | $ 583.18 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | QM INDUSTRIES |
| Inch - Metric | Inch |
| Brand | QM INDUSTRIES |
| Weight / LBS | 19 |
| Other Features | Double Row | Single Nut |
| Relubricatable | Yes |
| Global Part Number GPN | 508233 |
| Mounting Method | V Lock |
| Length Thru Bore | 3.19 Inch | 81.026 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 7.1 Inch | 181 Millimeter |
| Bolt Spacing Minimum | 6.81 Inch | 172.974Millimeter |
| Base to Center Height | 2.75 Inch | 69.85 Millimeter |
| Bolt Spacing Maximum | 7.44 Inch | 188.976Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 22214 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Urethane |
| Housing Material | Cast Steel |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
