FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

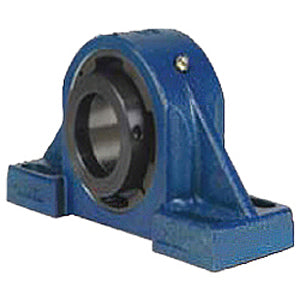

| title | QVVPK26V408SC |
| price | $ 3,551.11 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | QM INDUSTRIES |
| Inch - Metric | Inch |
| Brand | QM INDUSTRIES |
| Weight / LBS | 136 |
| Other Features | Double Row | Double Nut |
| Relubricatable | Yes |
| Global Part Number GPN | 506014 |
| Mounting Method | V Lock |
| Length Thru Bore | 7.02 Inch | 178.3 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 16 Inch | 406.4 Millimeter |
| Bolt Spacing Minimum | 15.25 Inch | 387.35Millimeter |
| Base to Center Height | 6.125 Inch | 155.575 Millimeter |
| Bolt Spacing Maximum | 16.75 Inch | 425.45Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 22226 |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Double Lip Viton |
| Housing Material | Cast Steel |
| Mounting Bolts | 1 Inch |
| Housing Configuration | 1 Piece Solid |
