FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

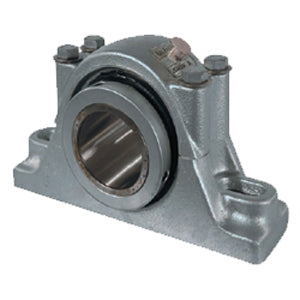

| title | RPB 103-C2 |
| price | $ 368.61 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 4.8 |
| Other Features | Double Row | Heavy Duty | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 12526 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.75 Inch | 69.85 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 4.7 Inch | 119 Millimeter |
| Bolt Spacing Minimum | 4.56 Inch | 115.824Millimeter |
| Base to Center Height | 1.5 Inch | 38.1 Millimeter |
| Bolt Spacing Maximum | 4.94 Inch | 125.476Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | RCI-103-C |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 2 Piece Split |
