FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

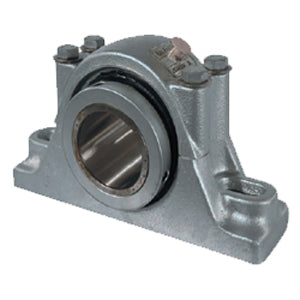

| title | RPB 108-C2 CR |
| price | $ 641.39 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 10.9 |
| Other Features | Double Row | Heavy Duty | Double Collar | With Set Screw | Corrosion Resistant |
| Relubricatable | Yes |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.375 Inch | 85.725 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6 Inch | 152.5 Millimeter |
| Bolt Spacing Minimum | 5.563 Inch | 141.3Millimeter |
| Base to Center Height | 2.125 Inch | 53.98 Millimeter |
| Bolt Spacing Maximum | 6.438 Inch | 163.525Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | RCI-108-C |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Fluoropolymer Coated Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 2 Piece Split |
