Specifications

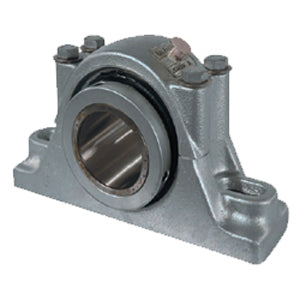

| title | RPB 204-C2 |
| price | $ 661.90 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 20.7 |
| Other Features | Double Row | Heavy Duty | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 12504 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 4 Inch | 101.6 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 7.9 Inch | 199.5 Millimeter |
| Bolt Spacing Minimum | 6.94 Inch | 176.276Millimeter |
| Base to Center Height | 2.75 Inch | 69.85 Millimeter |
| Bolt Spacing Maximum | 8.69 Inch | 220.726Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | RCI-204-C |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 2 Piece Split |
