Specifications

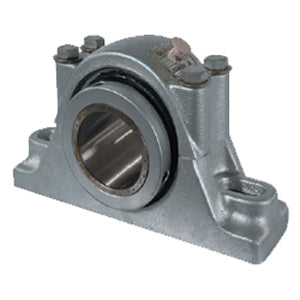

| title | RPBA 112-2 |
| price | $ 583.94 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 13.2 |
| Other Features | Double Row | Heavy Duty | Single Collar | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 12485 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.95 Inch | 74.93 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.7 Inch | 170 Millimeter |
| Bolt Spacing Minimum | 6.31 Inch | 160.274Millimeter |
| Base to Center Height | 2.25 Inch | 57.15 Millimeter |
| Bolt Spacing Maximum | 7.19 Inch | 182.626Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | RCIA-112 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 2 Piece Split |
