Specifications

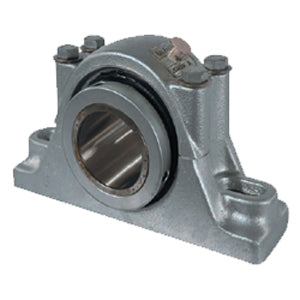

| title | RPBA 307-C2 CR |
| price | $ 2,106.19 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 56 |
| Other Features | Double Row | Heavy Duty | Single Collar | With Set Screw | Corrosion Resistant |
| Relubricatable | Yes |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 4.188 Inch | 106.375 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 10.7 Inch | 271.5 Millimeter |
| Bolt Spacing Minimum | 10.125 Inch | 257.175Millimeter |
| Base to Center Height | 3.75 Inch | 95.25 Millimeter |
| Bolt Spacing Maximum | 11.25 Inch | 285.75Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | RCIA-307-C |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Fluoropolymer Coated Cast Iron |
| Mounting Bolts | 7/8 Inch |
| Housing Configuration | 2 Piece Split |
