Specifications

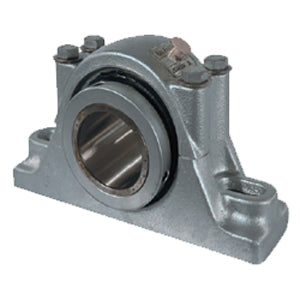

| title | RPBA 50MM-C2 |
| price | $ 686.93 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Metric |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 13.2 |
| Other Features | Double Row | Heavy Duty | Single Collar | With Set Screw |
| Relubricatable | Yes |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.953 Inch | 75 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.8 Inch | 171.5 Millimeter |
| Bolt Spacing Minimum | 6.311 Inch | 160.3Millimeter |
| Base to Center Height | 2.252 Inch | 57.2 Millimeter |
| Bolt Spacing Maximum | 7.189 Inch | 182.6Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | RCIA-50MM-C |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 2 Piece Split |
