Specifications

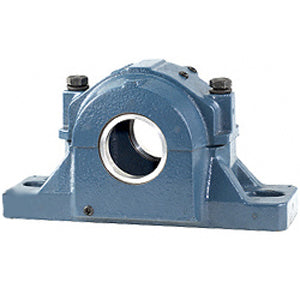

| title | SAF 22312 |
| price | $ 949.36 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | SKF |
| Inch - Metric | Metric |
| Brand | SKF |
| Weight / LBS | 31 |
| Other Features | Double Row | Heavy Duty |
| Relubricatable | Yes |
| Mounting Method | Shaft Mount |
| Length Thru Bore | 5.25 Inch | 133.35 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 9.1 Inch | 232 Millimeter |
| Bolt Spacing Minimum | 8.625 Inch | 219.075Millimeter |
| Base to Center Height | 3.25 Inch | 82.55 Millimeter |
| Bolt Spacing Maximum | 9.625 Inch | 244.475Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 22312 E |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 2 Piece Split |
