Specifications

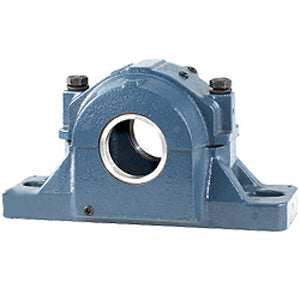

| title | SAF 22315 |
| price | $ 1,212.50 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | SKF |
| Inch - Metric | Metric |
| Brand | SKF |
| Weight / LBS | 48 |
| Other Features | Double Row | Heavy Duty |
| Relubricatable | Yes |
| Mounting Method | Shaft Mount |
| Length Thru Bore | 5.875 Inch | 149.225 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 11 Inch | 280 Millimeter |
| Bolt Spacing Minimum | 10.375 Inch | 263.525Millimeter |
| Base to Center Height | 4 Inch | 101.6 Millimeter |
| Bolt Spacing Maximum | 11.625 Inch | 295.275Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 22315 CC/W33 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 2 Piece Split |
