Specifications

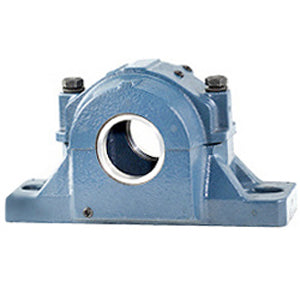

| title | SAF 22511 |
| price | $ 415.06 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | SKF |
| Weight / kgm | 8.188 |
| Inch - Metric | Inch |
| Brand | SKF |
| Weight / LBS | 16 |
| Other Features | Double Row | Heavy Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 501479 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 3.875 Inch | 98.425 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 7.6 Inch | 193 Millimeter |
| Bolt Spacing Minimum | 7.375 Inch | 187.325Millimeter |
| Base to Center Height | 2.75 Inch | 69.85 Millimeter |
| Bolt Spacing Maximum | 7.875 Inch | 200.025Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 22211 EK |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 2 Piece Split |
