FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

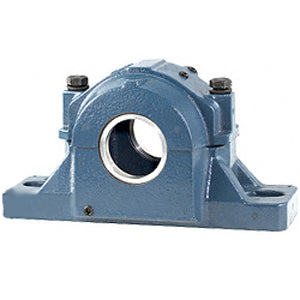

| title | SAF 22513/C3 |
| price | $ 529.71 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | SKF |
| Inch - Metric | Inch |
| Brand | SKF |
| Weight / LBS | 23 |
| Other Features | Double Row | Heavy Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 501476 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 4.5 Inch | 114.3 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 8.9 Inch | 226 Millimeter |
| Bolt Spacing Minimum | 8.125 Inch | 206.375Millimeter |
| Base to Center Height | 3 Inch | 76.2 Millimeter |
| Bolt Spacing Maximum | 9.5 Inch | 241.3Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 22213 EK |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 2 Piece Split |
