FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

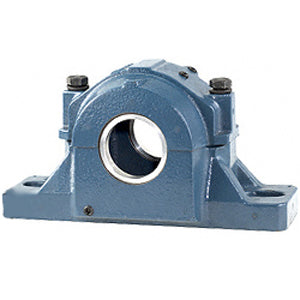

| title | SAFS 22517 |
| price | $ 1,676.54 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | SKF |
| Inch - Metric | Inch |
| Brand | SKF |
| Weight / LBS | 38 |
| Other Features | Double Row | Heavy Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 501391 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 5 Inch | 127 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 10.4 Inch | 264.2 Millimeter |
| Bolt Spacing Minimum | 9.875 Inch | 250.83Millimeter |
| Base to Center Height | 3.75 Inch | 95.25 Millimeter |
| Bolt Spacing Maximum | 11 Inch | 279.4Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 22217 CCK/W33 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Labyrinth |
| Housing Material | Cast Steel |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 2 Piece Split |
