Specifications
| title | SAP 201 8 G |
| price | $ 23.56 / each |

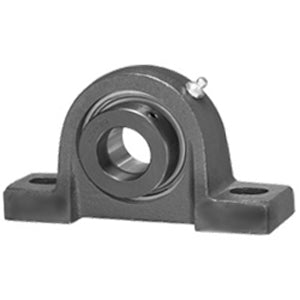

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI |
| Inch - Metric | Inch |
| Brand | IPTCI |
| Weight / LBS | 1.6 |
| Other Features | Single Row | Narrow Inner Race | High Base |
| Relubricatable | Yes |
| Global Part Number GPN | 499658 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.126 Inch | 28.6 Millimeter |
| Actual Bolt Center to Center | 3.6 Inch | 92Millimeter |
| Nominal Bolt Center to Center | 3.6 Inch | 92 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.188 Inch | 30.175 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | SA201-8G |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | K Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/8 Inch |
| Housing Configuration | 1 Piece Solid |
