Specifications

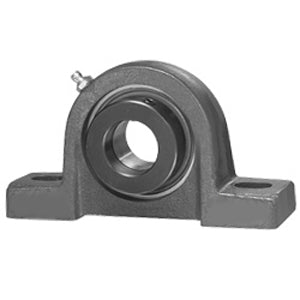

| title | SAPL 206 30MM G |
| price | $ 34.14 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI |
| Inch - Metric | Metric |
| Brand | IPTCI |
| Weight / LBS | 3 |
| Other Features | Single Row | Narrow Inner Race | Low Base |
| Relubricatable | Yes |
| Global Part Number GPN | 499672 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.406 Inch | 35.7 Millimeter |
| Actual Bolt Center to Center | 4.8 Inch | 121Millimeter |
| Nominal Bolt Center to Center | 4.9 Inch | 123.5 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.563 Inch | 39.7 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | SA206G |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | K Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
