FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

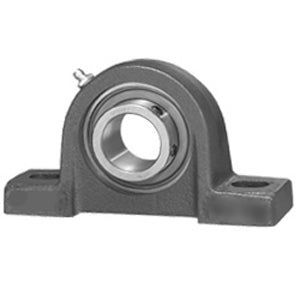

| title | SBP 208 24 G |
| price | $ 39.71 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI |
| Inch - Metric | Inch |
| Brand | IPTCI |
| Weight / LBS | 4.9 |
| Other Features | Single Row | Narrow Inner Race | High Base |
| Relubricatable | Yes |
| Global Part Number GPN | 499549 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.417 Inch | 36 Millimeter |
| Actual Bolt Center to Center | 5.4 Inch | 136Millimeter |
| Nominal Bolt Center to Center | 5.4 Inch | 136 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.938 Inch | 49.225 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | SB208-24G |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | K Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
