Specifications

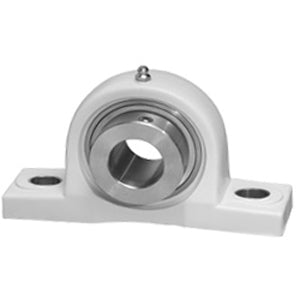

| title | SNATP 207 23 |
| price | $ 160.10 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI |
| Inch - Metric | Inch |
| Brand | IPTCI |
| Weight / LBS | 1.9 |
| Other Features | Single Row | Corrosion Resistant | Stainless Steel Insert | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 518920 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.961 Inch | 49.8 Millimeter |
| Actual Bolt Center to Center | 5 Inch | 127Millimeter |
| Nominal Bolt Center to Center | 5 Inch | 127 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.875 Inch | 47.63 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | SNA207-23 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | B Seal |
| Housing Material | Thermoplastic |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
