Specifications
| title | SP-26TC |
| price | $ 373.65 / each |

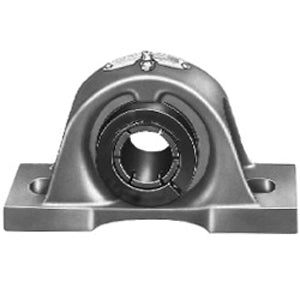

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 8.4 |
| Other Features | Single Row | Standard Duty | Skwezloc | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 6945 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.938 Inch | 49.225 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.5 Inch | 165 Millimeter |
| Bolt Spacing Minimum | 5.875 Inch | 149.225Millimeter |
| Base to Center Height | 2.375 Inch | 60.325 Millimeter |
| Bolt Spacing Maximum | 7.125 Inch | 180.975Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 2-110TC |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
