Specifications
| title | SPD-19C |
| price | $ 248.51 / each |

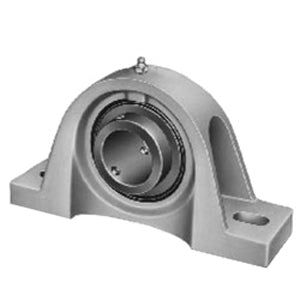

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 5 |
| Other Features | Single Row | Standard Duty | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 7026 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.75 Inch | 44.45 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 5.8 Inch | 146.5 Millimeter |
| Bolt Spacing Minimum | 5.375 Inch | 136.525Millimeter |
| Base to Center Height | 2 Inch | 50.8 Millimeter |
| Bolt Spacing Maximum | 6.125 Inch | 155.575Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 2-13DC |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
