Specifications

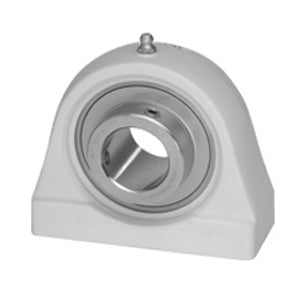

| title | SUCTPA 208 40 N L3 |
| price | $ 197.17 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI |
| Inch - Metric | Metric |
| Brand | IPTCI |
| Weight / LBS | 2.1 |
| Other Features | Single Row | Corrosion Resistant | Stainless Steel Insert | Has Slinger | Optional End Cap |
| Relubricatable | No |
| Global Part Number GPN | 499525 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.937 Inch | 49.2 Millimeter |
| Actual Bolt Center to Center | 3.5 Inch | 90Millimeter |
| Nominal Bolt Center to Center | 3.5 Inch | 90 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.937 Inch | 49.2 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Tap Base Pillow Block |
| Insert Part Number | SUC208 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | L3 Seal |
| Housing Material | Thermoplastic |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
