FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

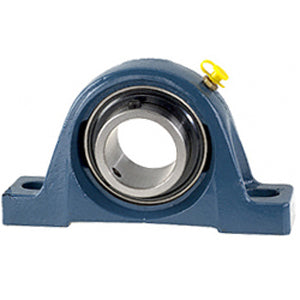

| title | SY 1.1/2 TF/AH |
| price | $ 138.19 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | SKF |
| Weight / kgm | 1.95 |
| Inch - Metric | Inch |
| Brand | SKF |
| Weight / LBS | 4.3 |
| Other Features | Single Row | Standard Duty | Wide Inner Race | Air Handling | Anti Rotation Pin | Y Bearing | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 501336 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.938 Inch | 49.225 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 5.4 Inch | 136 Millimeter |
| Bolt Spacing Minimum | 4.938 Inch | 125.425Millimeter |
| Base to Center Height | 1.938 Inch | 49.225 Millimeter |
| Bolt Spacing Maximum | 5.75 Inch | 146.05Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | YAR 208-108-2F/AH |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | M Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
