Specifications

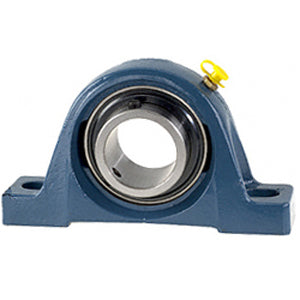

| title | SY 1.11/16 TF/VA228 |
| price | $ 390.04 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | SKF |
| Inch - Metric | Inch |
| Brand | SKF |
| Weight / LBS | 5.3 |
| Other Features | Single Row | Standard Duty | Wide Inner Race | High Temperature Bearing with Graphite | Has Flinger | Y Bearing |
| Relubricatable | Yes |
| Global Part Number GPN | 501352 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.938 Inch | 49.225 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 5.8 Inch | 146.5 Millimeter |
| Bolt Spacing Minimum | 5.313 Inch | 134.95Millimeter |
| Base to Center Height | 2.125 Inch | 53.98 Millimeter |
| Bolt Spacing Maximum | 6 Inch | 152.4Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | YAR 209-111-2F/VA228 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | M Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
