Specifications

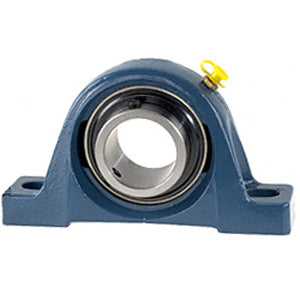

| title | SY 2.3/4 TF |
| price | $ 335.62 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | SKF |
| Inch - Metric | Inch |
| Brand | SKF |
| Weight / LBS | 16.5 |
| Other Features | Single Row | Standard Duty | Wide Inner Race | Y Bearing | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 501251 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.5 Inch | 63.5 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 8.9 Inch | 226 Millimeter |
| Bolt Spacing Minimum | 8 Inch | 203.2Millimeter |
| Base to Center Height | 3.25 Inch | 82.55 Millimeter |
| Bolt Spacing Maximum | 9 Inch | 228.6Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | YAR 215-212-2F |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | M Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 1 Piece Solid |
